Protokoll Exerciser PX2816B

Der neueste Protokoll Exerciser PX2816B von Acute Technology bietet eine umfassende Plattform für die Simulation und Prüfung von Protokoll-Controllern und -Zielen. Er eignet sich sowohl für den Einsatz während der Produktentwicklung als auch für automatisierte Tests in der Massenproduktion und integriert fortschrittliche Funktionen zur Erzeugung und Analyse von Datenverkehr.

PX2816B - Datenblatt

Data Transmission

  • Interface: USB Type-C
  • Throughput: Up to 5Gbps


Solid-State Drive (SSD) Storage Support

  • Users need to purchase and install a compatible M.2 2280 PCIe Gen3 to Gen5 SSD.
  • The SSD is used only in LA/PA logger mode, and its file system adopts Microsoft exFAT technology for storing large amounts of data.


8-Channel Exerciser POD Options: MIPI I3C, I􀂆C, UART

  • Capable of simulating protocol signals on up to 8 channels, and can be configured as either a Controller or Target device.
  • Can edit topology of internal devices, where each device has separate settings.
  • Can edit bus output voltage and operating modes (Pull up/down, etc.).
  • Controller Mode Simulation
    - Provides Quick settings (Template) for rapid script generation and editing.

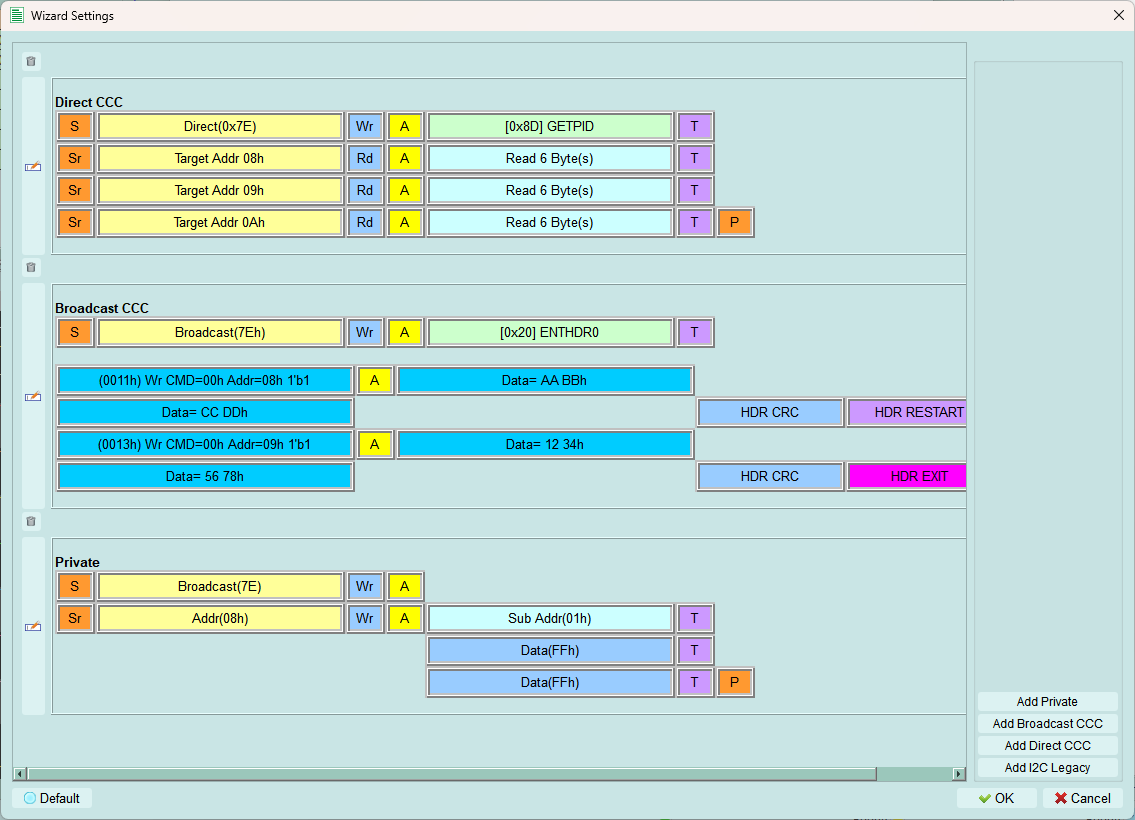

    - Provides Design wizard for editing transmission protocol data.
  • Target Mode Simulation
    - Supports different Target types in various different communication protocols.
  • SDK Mode
    - Supports Python Automation control API and examples.
  • Logic Analysis/Protocol Analysis Functions
    - Maximum sampling rate 2GHz
    - When using with exerciser, can simultaneously observe signal waveforms and analysis results
    - Can be used independently as logic analyzer or protocol analyzer
    - Includes communication protocol decode and protocol analyzer functions
    - Supports real-time Live Mode decoding.
    - Can view decoding and packet statistics reports while transmitting protocol data.


16-Channel Logic Analyzer / Protocol Analyzer (Optional)

  • Supports Acute 16-channel LA/PA POD.
  • Supports various Protocol Trigger/Decode functions.


Power Supply and Power Consumption Measurement

  • Provides one set of Power Supply (DC) output, configurable 0.1V - 5V DC output.
  • When using power supply, can simultaneously measure power consumption.


General Purpose Input/Output (GPIO)

  • Provides two sets of GPIO outputs, configurable as Reset signal or general I/O control.


MIPI I3C Specifications

  • Supports I3C v1.2 Specification.
  • Can dynamically configure simulated devices (types: I3C Primary Controller / I3C Secondary Controller / I3C Target / I2C Target)

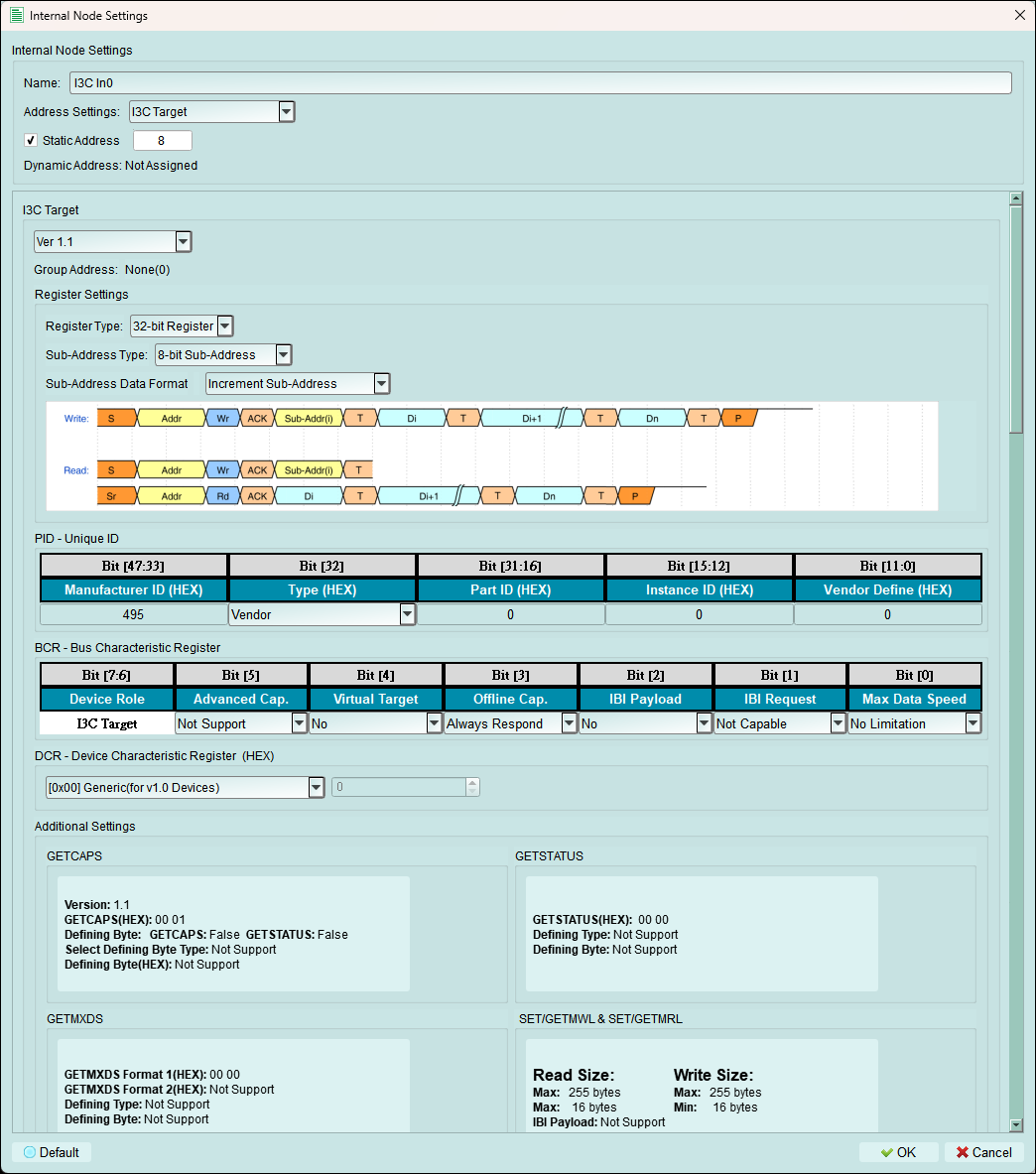

  • Can set device PID / BCR / DCR.

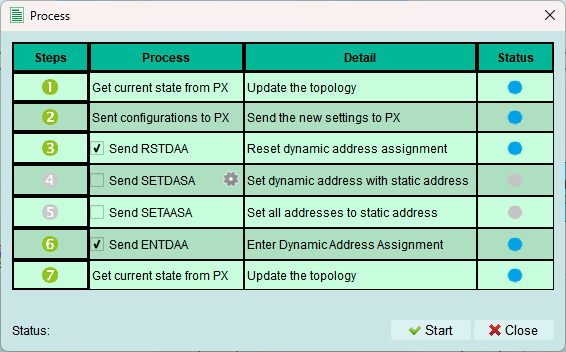

  • Custom device address allocation table creation.
  • Supports generating packet data in different modes.
  • Supported Modes
    - I3C SDR Mode
    - I2C Legacy

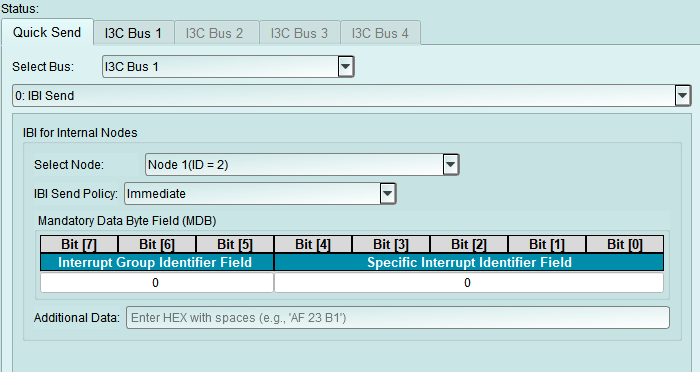

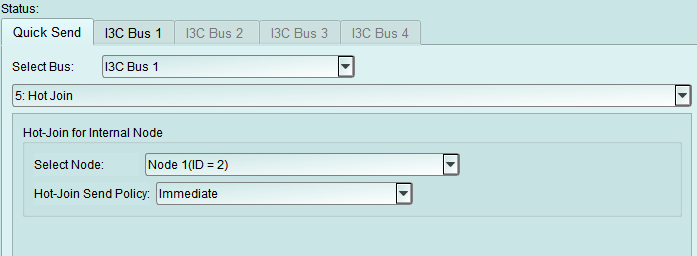

  • Supports I3C Target mode sending IBI / Hot Join and other Interrupts.
  • Can dynamically adjust Clock Speed and detailed Timing settings.
  • Can send command formats containing Errors (Parity, CRC, etc.).


I²C Specifications

  • External I²C devices auto scanning.
  • Timing and Frequency adjustment.
  • Support different register types of internal I²C node.
  • Capable of simulating both Controllers and Targets.


UART Specifications

  • Support different baud rates and format for UART Packet.
  • Capable to send packets with ASCII or HEX format.

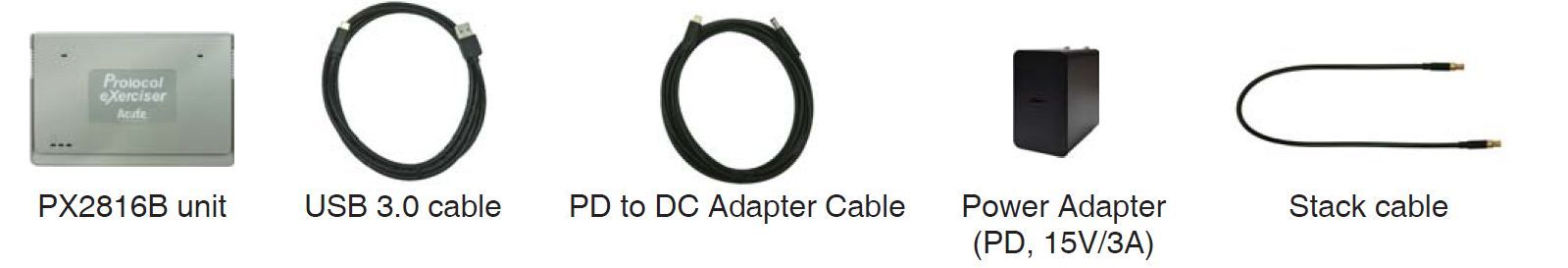

Packliste

PX-POD (Option)
